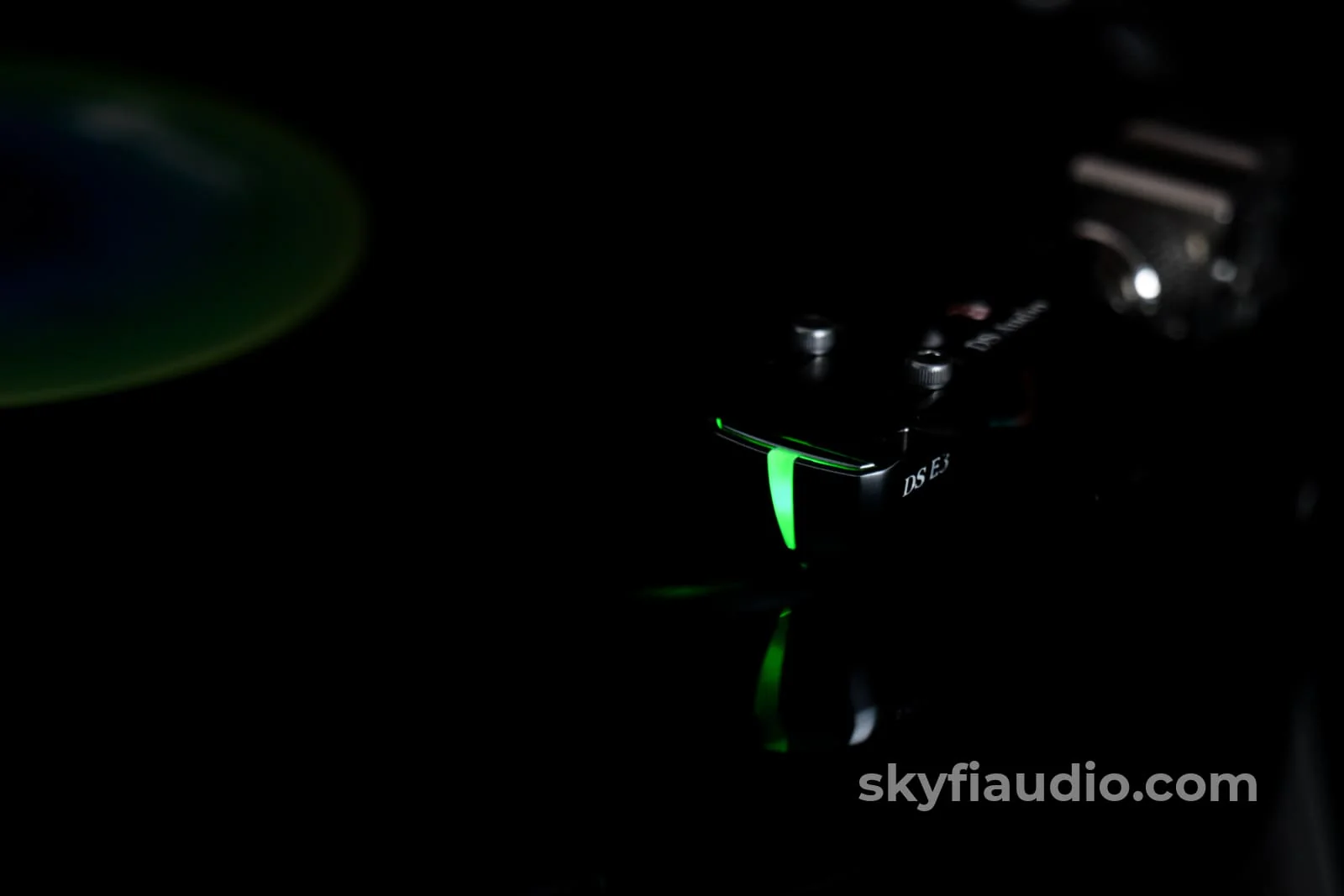

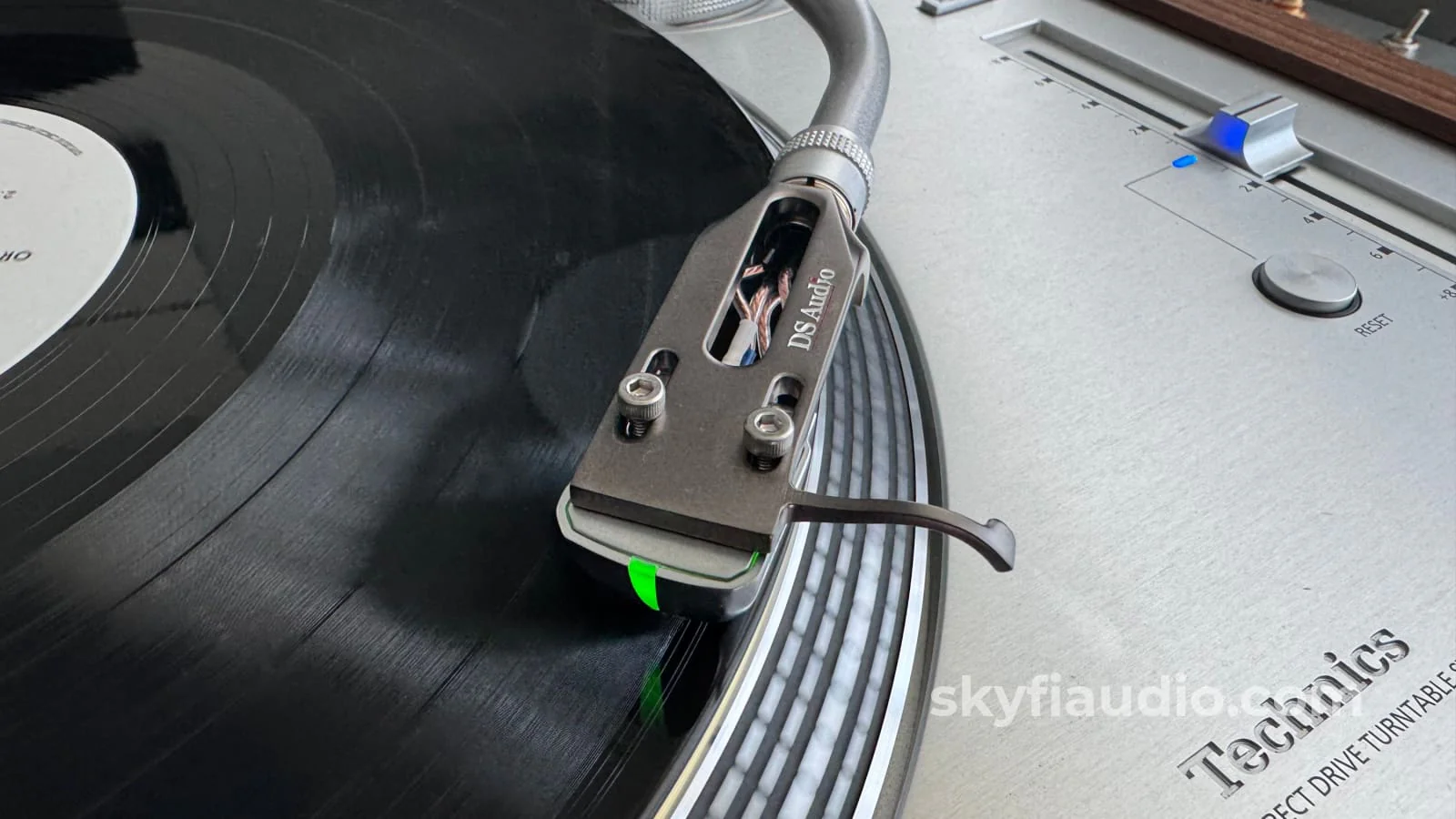

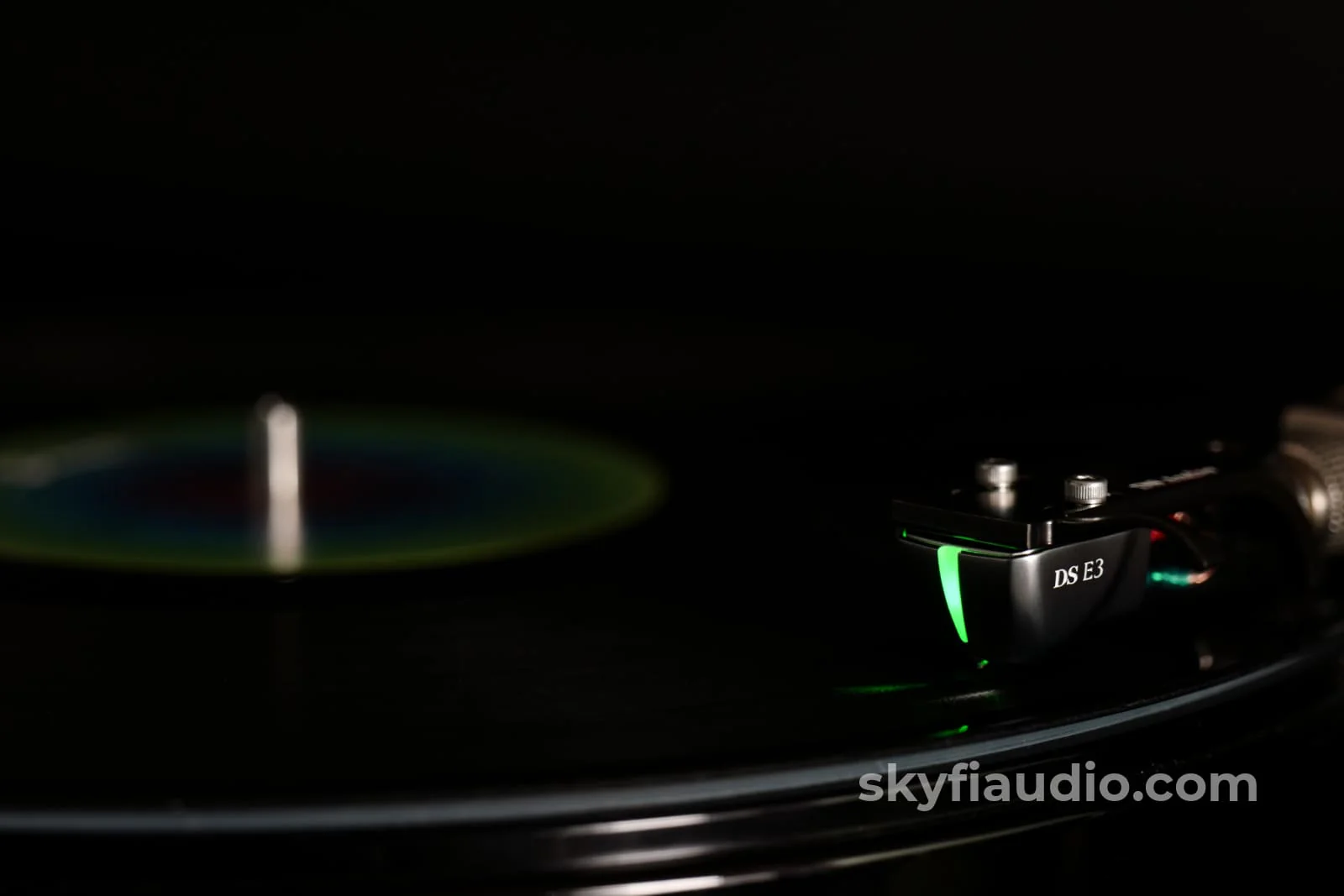

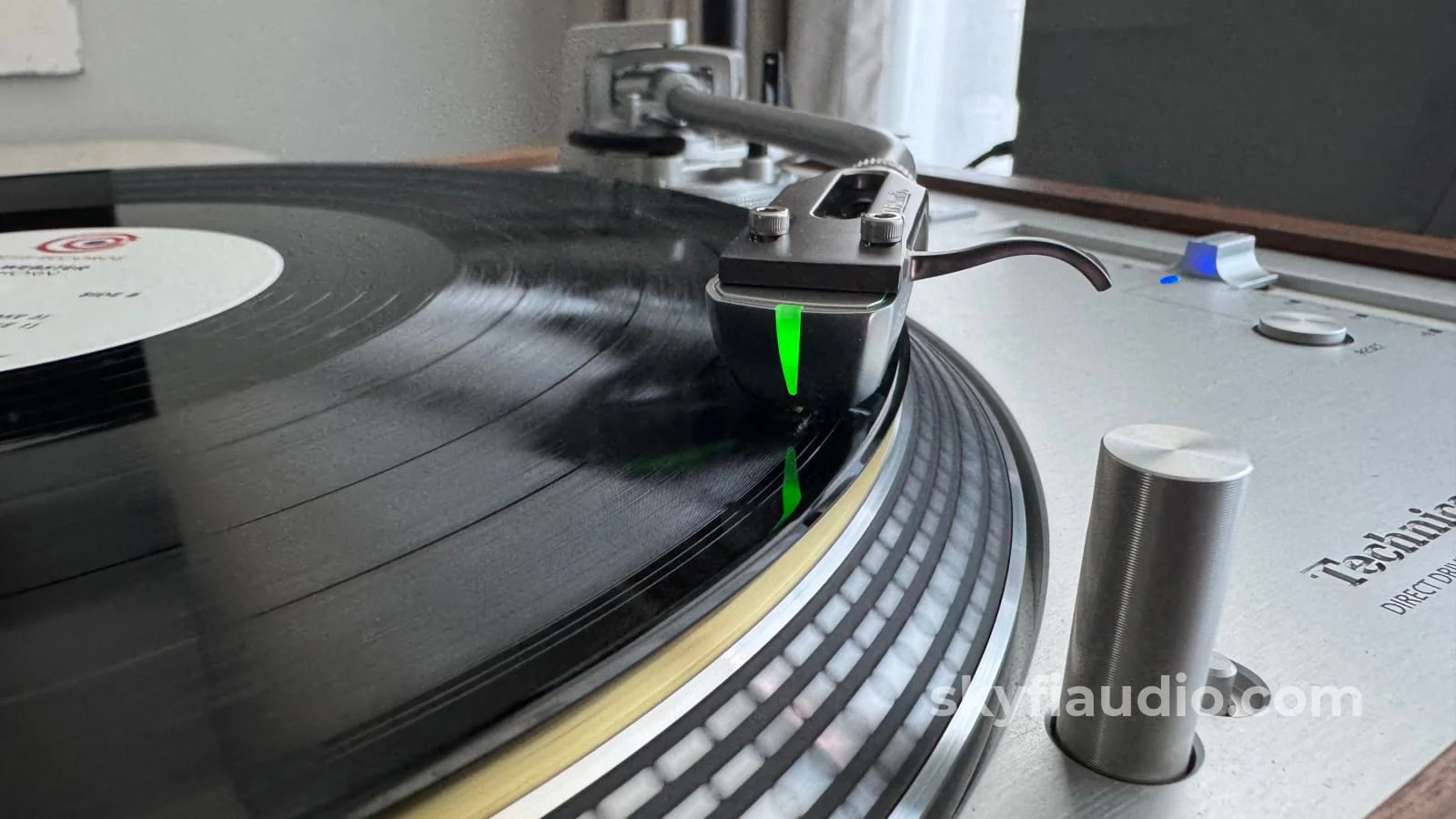

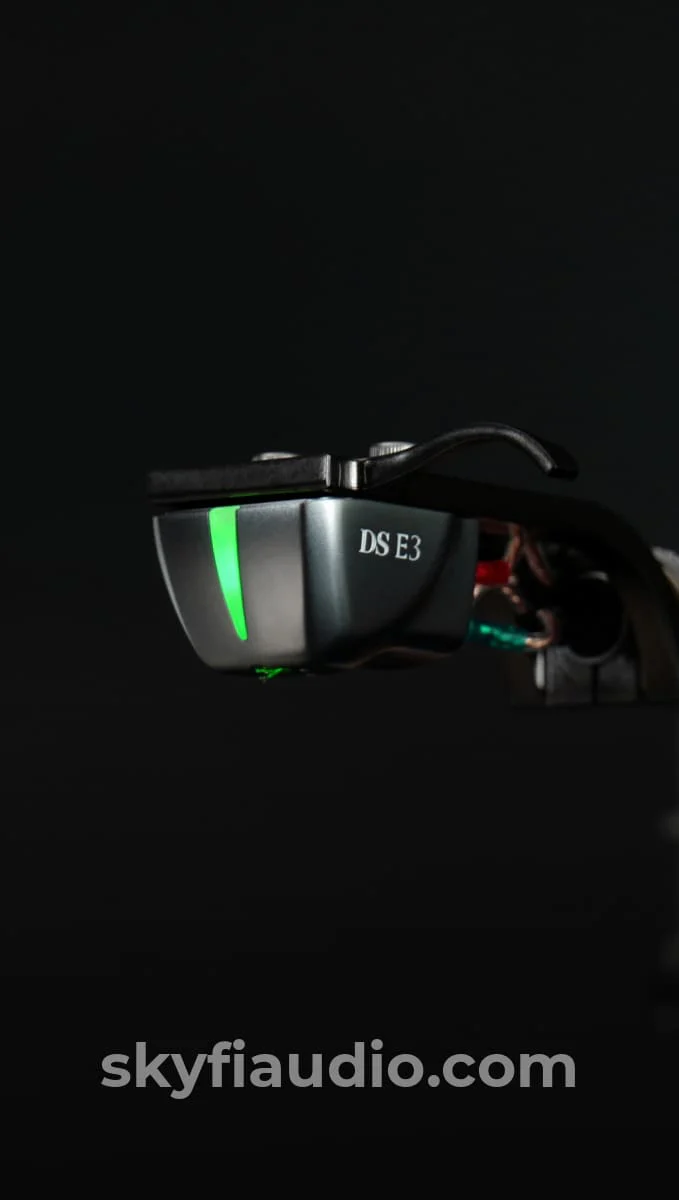

DS Audio DS-E3 Optical Phono Cartridge System

General:
"The game changer"

DS-E3
Truly beyond price.
The DS-E3 is a revolutionary technology in historic record reproduction.
Ikuo Tsunoda, Audio Critic

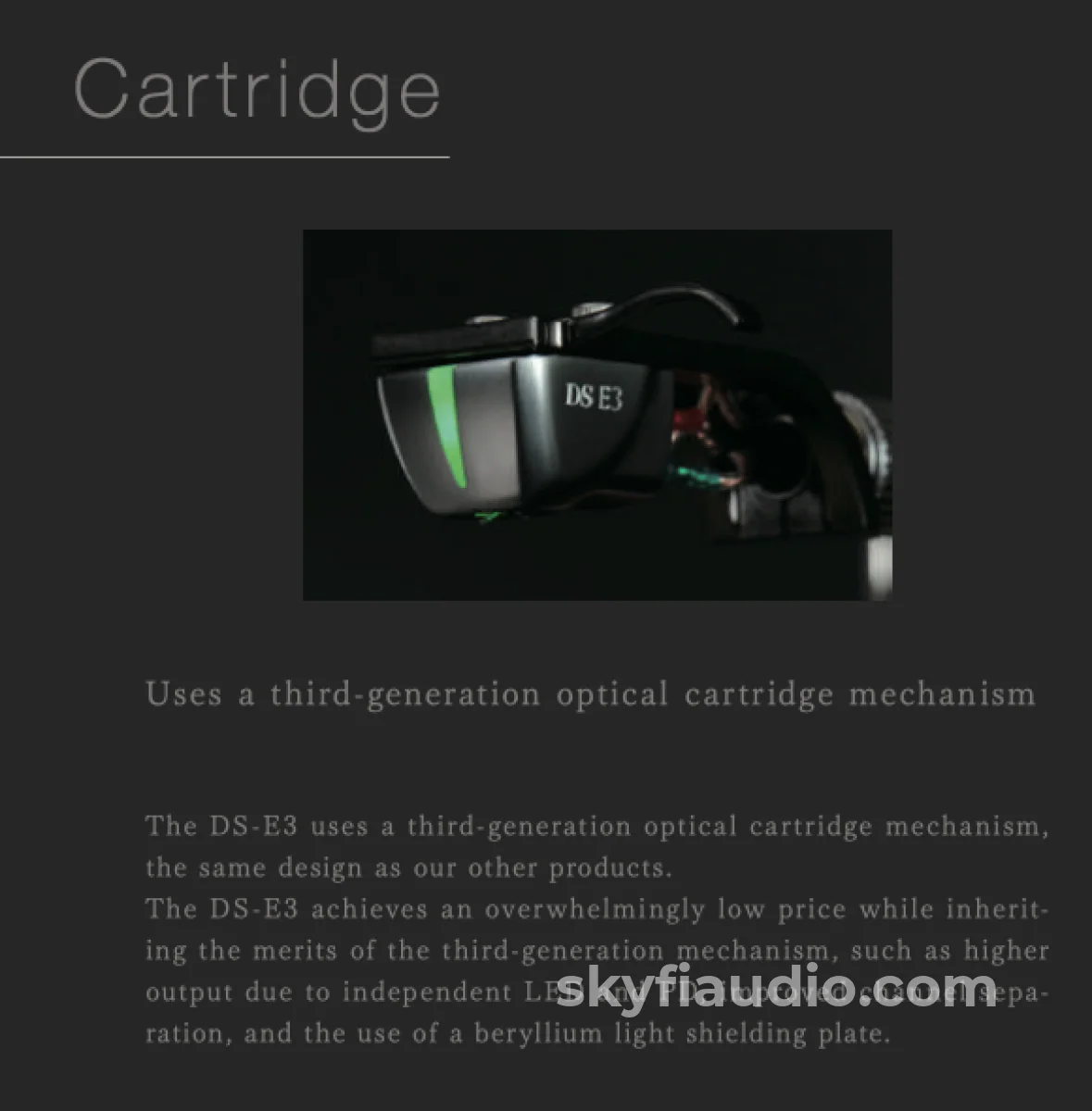

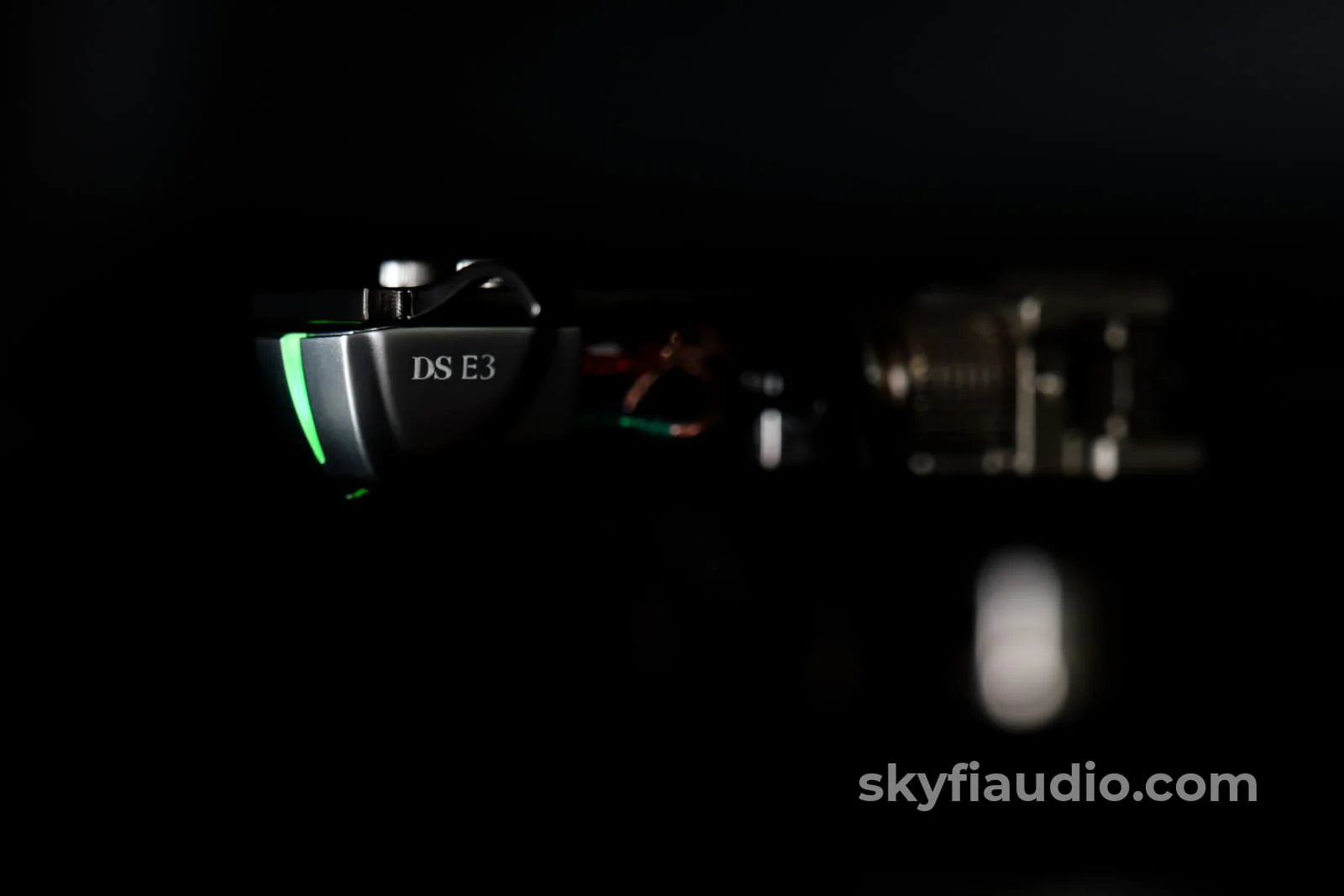

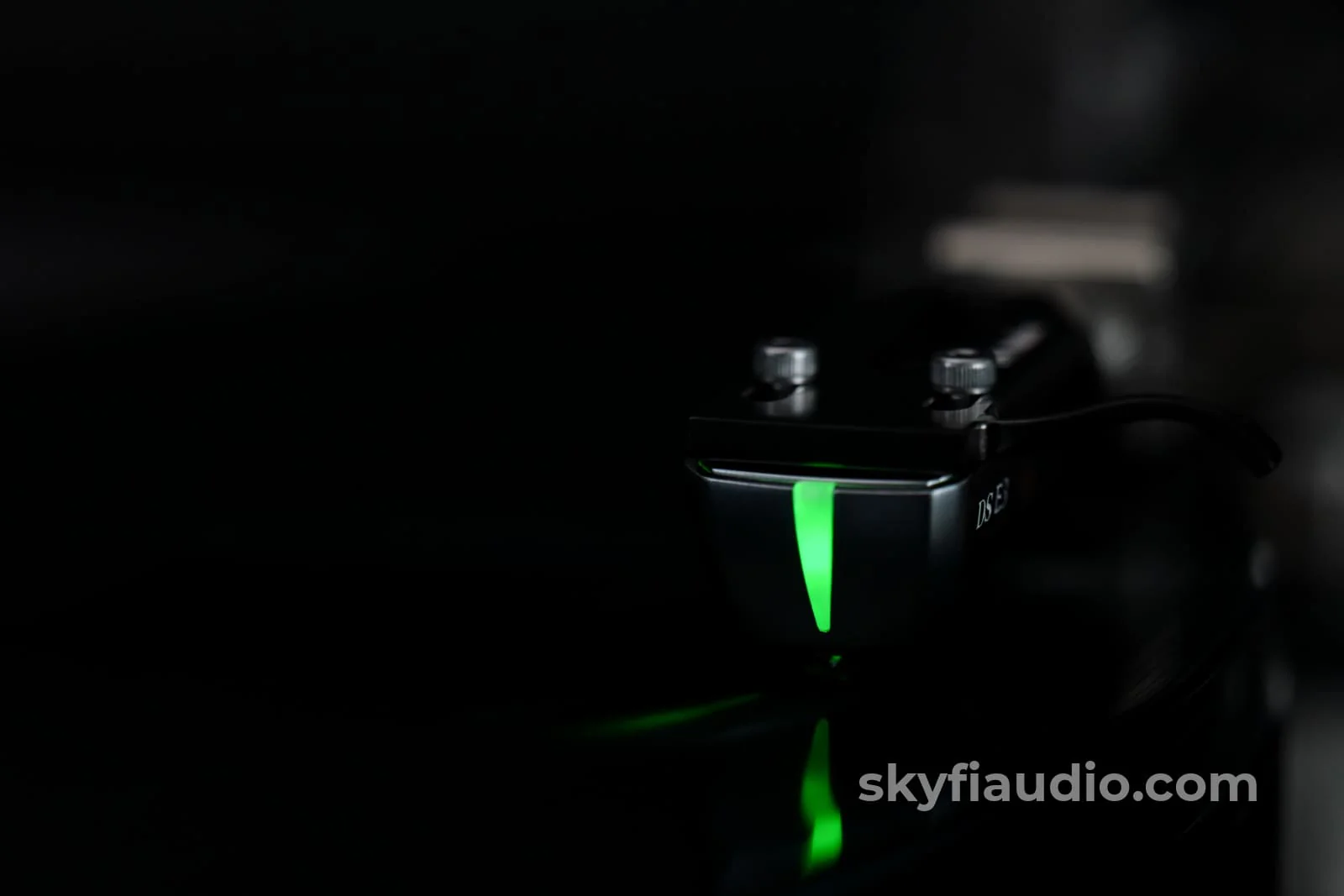

Uses a third-generation optical cartridge mechanism
The DS-E3 uses a third-generation optical cartridge mechanism, the same design as our other products.

The DS-E3 achieves an overwhelmingly low price while inheriting the merits of the third-generation mechanism, such as higher output due to independent LED and PD, improved channel separation, and the use of a beryllium light shielding plate.

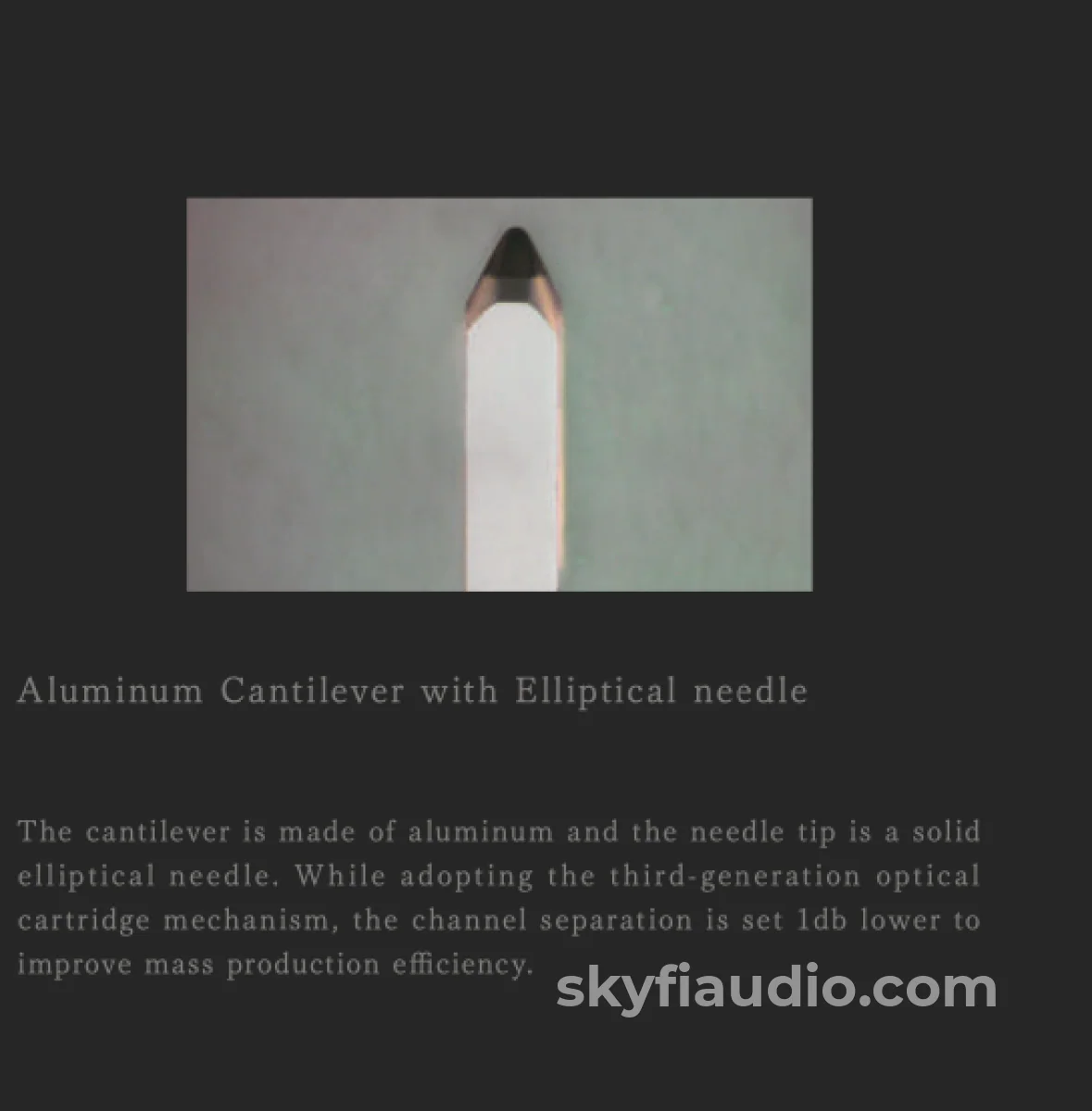

Aluminum cantilever with elliptical needle
The cantilever is made of aluminum, and the tip of the needle is a solid elliptical needle. While adopting the third-generation optical cartridge mechanism, the channel separation is set at 1 dB lower to improve mass production efficiency.

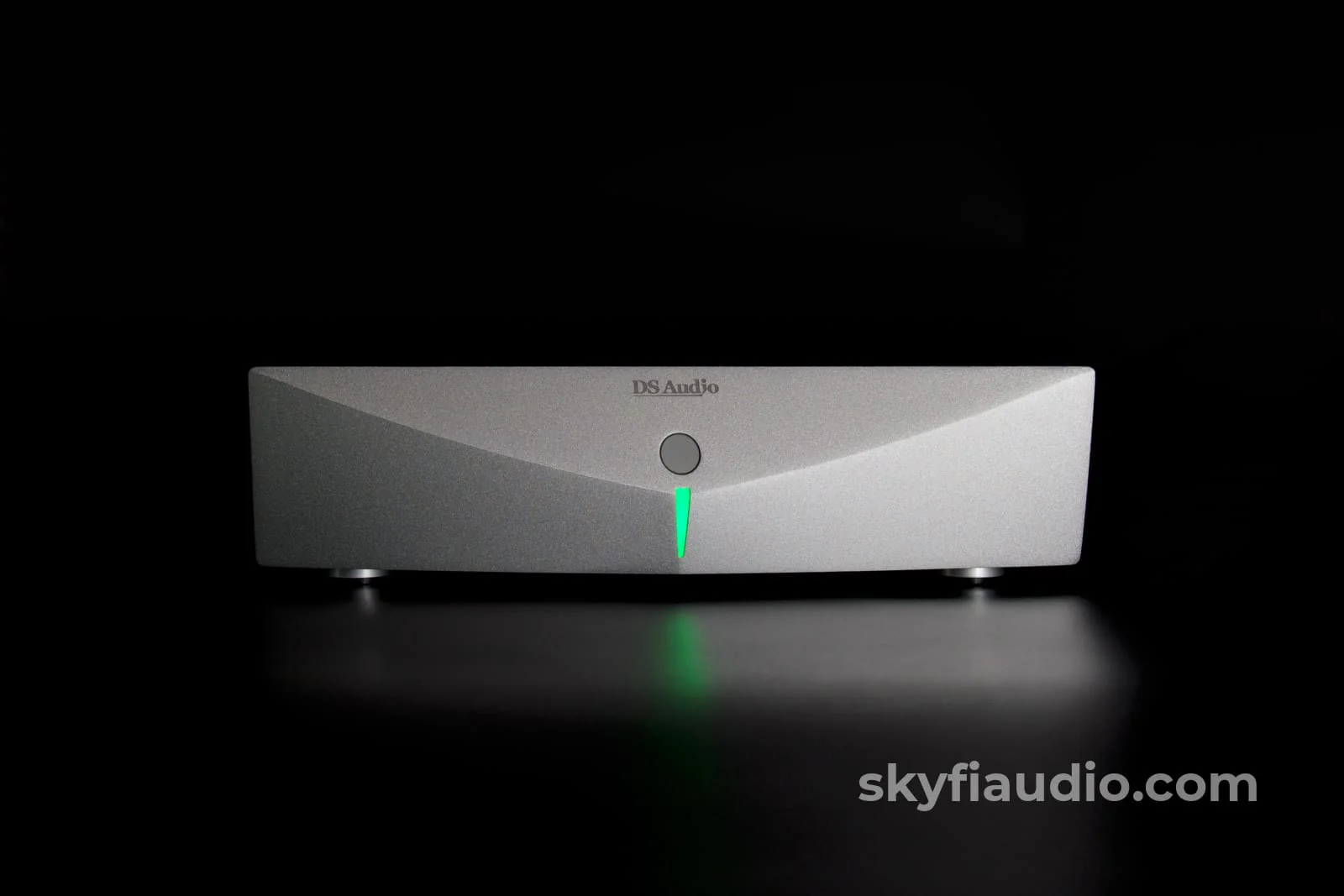

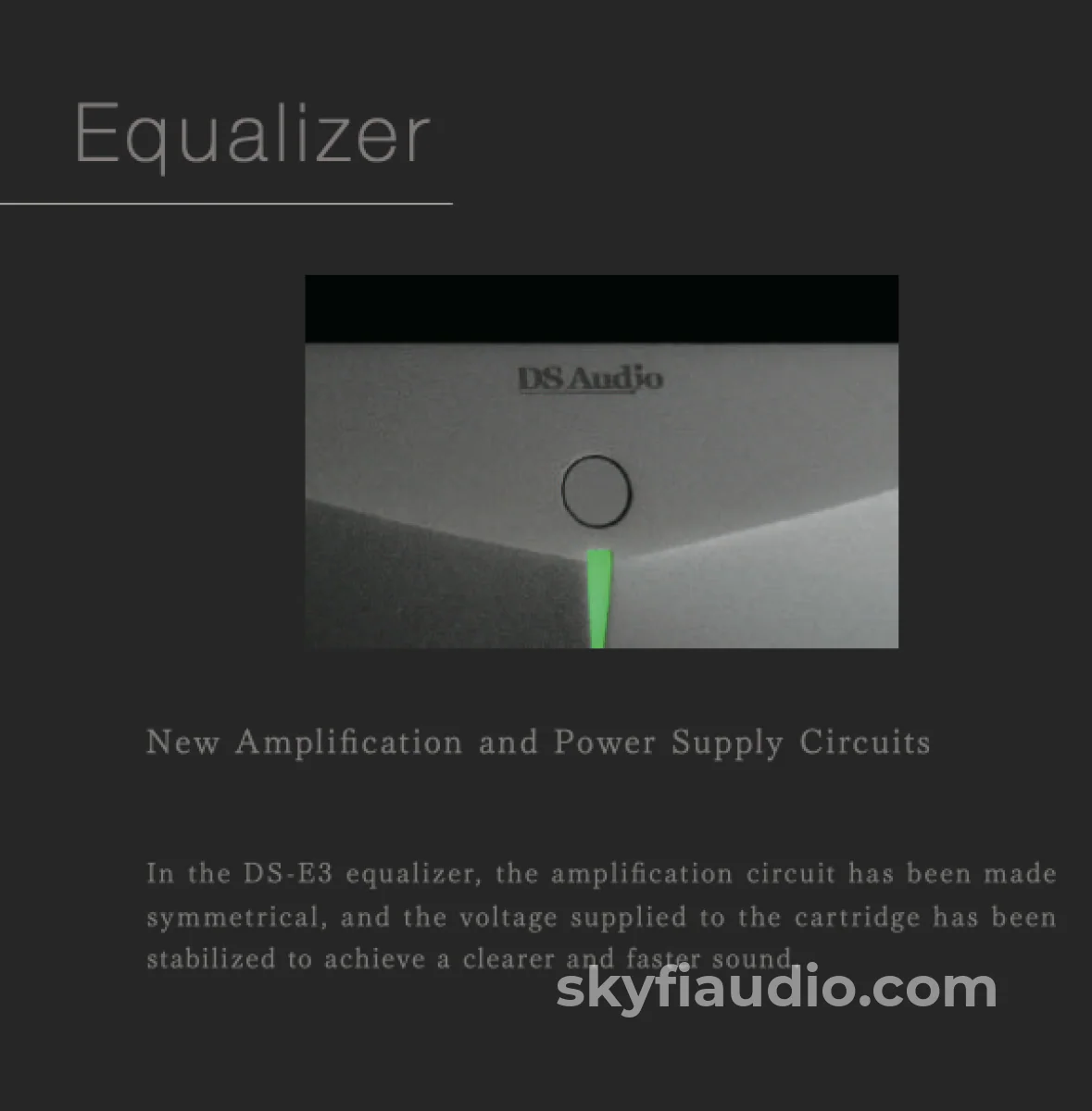

New Amplification and Power Supply Circuits
The DS-E3 equalizer's amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.

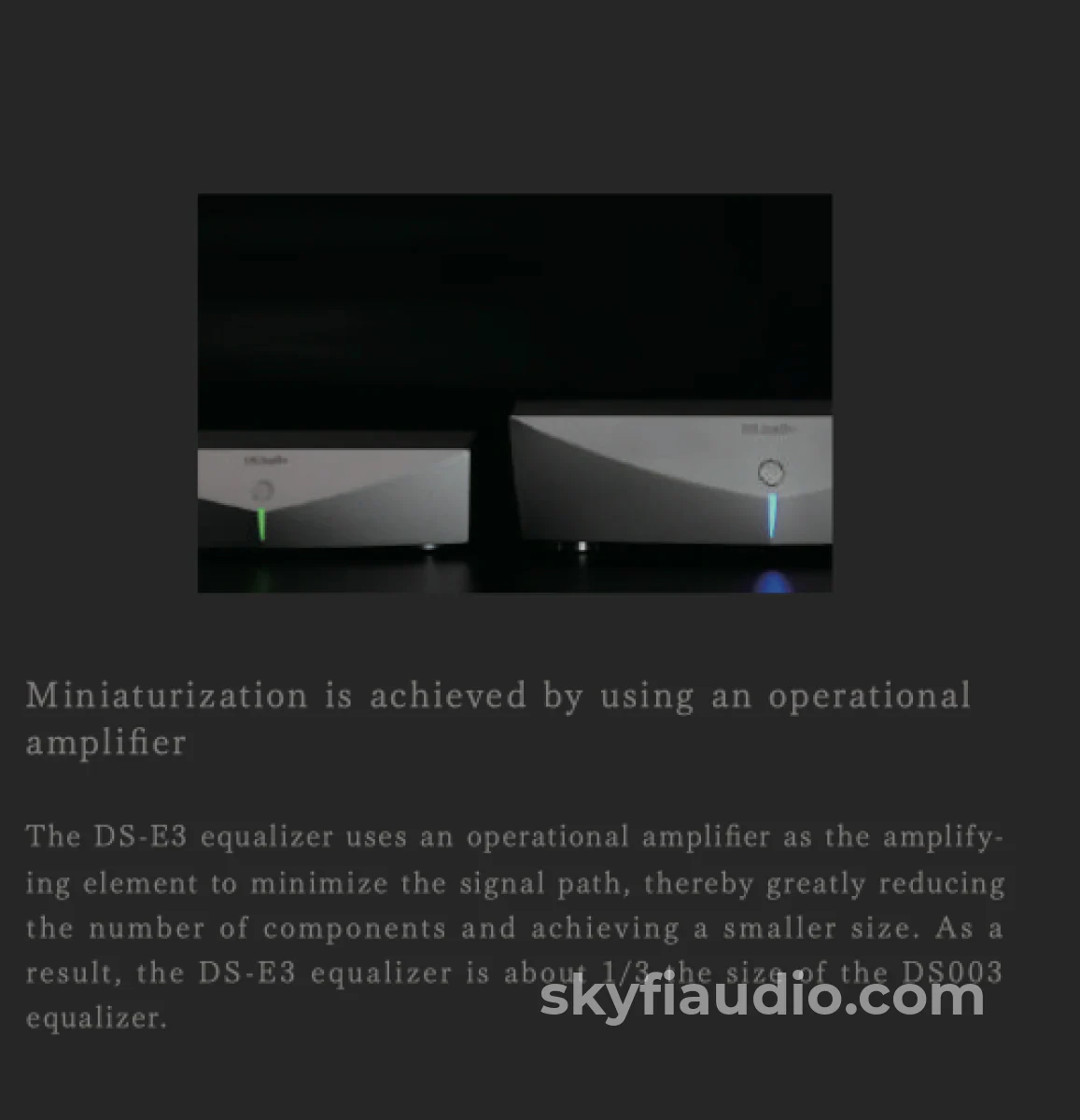

Miniaturization is achieved by using an operational amplifier
The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

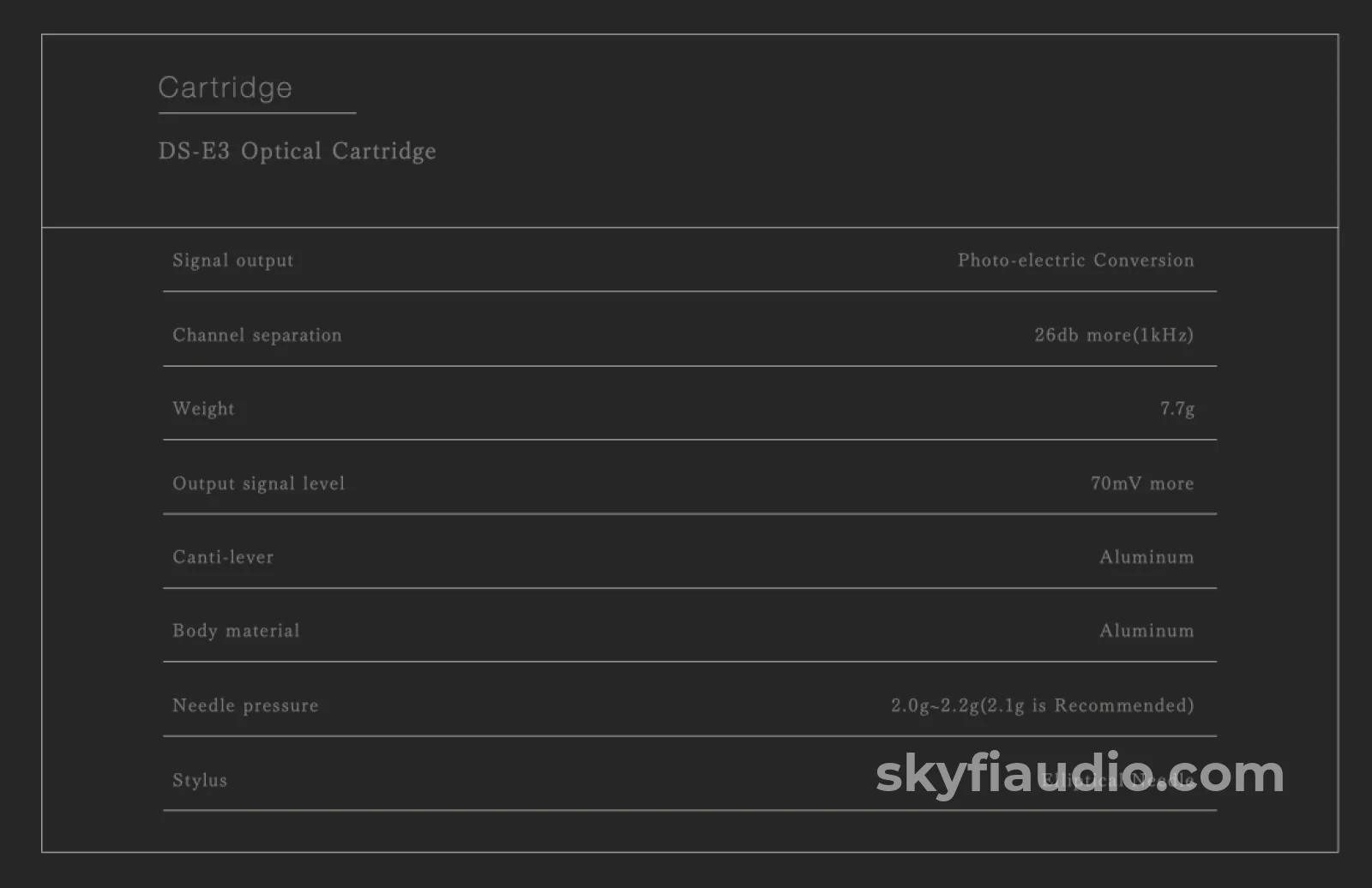

DS-E3 Optical Cartridge Specifications:
Signal Output:
Photo-electric Conversion

Channel separation:
26 dB or greater (@1 kHz)

Weight:
7.7g

Output Signal Level:
50mV or more

Cantilever:
Aluminum

Body Material:
Aluminum

Needle Type:
Nude Elliptical

Needle Pressure:
2.0g - 2.2g (2.1g is recommended)
